Tractor YM 351 A / YM 357 A

Max Power

51.0 ~ 57.0

Weight

1680~1790kg

Feel the durability and toughness while working with YM machines that are equipped with extraordinary power and capabilities. The YM 351A (51HP) AND YM357A (57 HP) tractors are equipped with a powerful and fuel efficient Yanmar Direct Injection engine, Full Synchromesh transmission for smooth gear changes, a versatile independent PTO with various work tools, as well as the Smartassist Remote feature for convenience unit work management.

Features

Including SMARTASSIST Remote as standard

Geolocation by GPS and other sensors lets you know exactly how and where your tractor is working. Reduce downtime and errors to save money.

Check location and work status at a glance.

Measure work area accurately.

Set location and work period in advance.

Easily inspect work logs.

See the hours worked on a graph.

View alerts as they happen.

Powerful and fuel-Efficient

Illustration YM357A.

Direct-injection diesel engine

Developer of the world's first small diesel engine, YANMAR's extensive fuel injection and combustion technology comes together in this powerful and reliable package. Whether plowing or puddling, the YM tractor offers excellent fuel efficiency and outstanding durability. Try the YM357A's three-liter, long-stroke engine for superior power and reliability.

Monoplunger fuel injection pump

The pump supplies fuel at uniformly high pressure to the fuel injector of each cylinder, for even combustion, smoother power and less vibration.

Fuel injector

The precision designed injector nozzle atomizes the fuel at high pressure for introduction to the cylinder.

Original combustion chamber design

The combustion chamber is specially shaped to promote an even fuel-air mixture and complete combustion for high power and low emissions.
Illustration YM357A.

Two-stage air filter

Two-stage filtration removes grit and dust from the air intake to prevent piston ring wear.

Dual balancer system and helical gear

Noise and vibration reduction

The noise and vibration reduction are achieved with the application of dual balancer system and the helical gear.

Work Faster

Get more done with faster, more accurate operation.

Gear ratios widely overlap all speed ranges so that you can get the best torque for your work speed, using less fuel and saving you money.

Choose the right PTO speed for the job

The PTO speed of YM tractor is optimized with the rated 540 rpm at lower engine speed. With ensuring a beautiful finish of rotary tillage, pursue to highly balancing faster work and fuel saving.

Type of use 1: Economy PTO

Use of standard PTO 540 rpm with lower engine speed allows the operator not only to realize a beautiful finish of rotary tillage, but also to save more fuel.

Type of use 2: High work efficiency

Wider range of engine speed (PTO speed) provides the operator with options how to set optimum working speed for the job. Increase engine speed to pursue higher work efficiency with ensuring a beautiful finish.

2 Speed PTO

From low-speed plowing to high-speed puddling, select the right PTO speed for the job.

Paddy, dry field, or hauling

PADDY, DRY FIELD, OR HAULING2

Newly designed rotary tiller

The innovative design means that even tilling at high speed causes little loss of power as most soil does not travel into the rotary, while the long stroke of the rear cover rakes the soil for a more beautiful finish.

LONG REAR COVER

Long rear cover

The rear cover is longer by 15% than the conventional one, with the broader raking surface giving a beautiful finish.

Ground clearance

Great clearance is the key to powering on in muddy conditions or passing over crops without damaging them.

Hydraulic lift capacity

Even large and heavy implements like plows or planters can be raised with ease to perform wide range of work.
*at lower link end.

Tight turns

Turn the wheels all the way over to their maximum 55 degrees for tight turns at the end of the row and those tough corners.

Drawbar Hitch

Equipped with a drawbar (clevis type) as standard for hauling and towing a variety of loads.

Everything You Need to Get The Job Done

FULL SYNCHROMESH TRANSMISSION

Full synchromesh transmission

A full syncromesh transmission allows you to smoothly change direction and speed without gear noise, even when the tractor is still moving, just by shifting the reverser lever and main shift lever.

Synchronized reverser lever

Change direction, simply by shifting the lever conveniently located by the steering wheel, to back out of tight corners.

4 speed synchronized main shift lever

Select the best speed for the job by combining the smooth changing synchronized main shift with the 2 speed range shift.

Deluxe seat with suspension

Shift forwards or back with a convenient lever and enjoy stepless adjustment of seating suspension for comfort that lets you work all day. Stepless adjustment knob behind seat back.

Fully hydraulic power steering

Even heavy going muddy paddies are no problem with hydraulic power steering driving you through the toughest turns.

Flat deck

A flat deck lets you slide smoothly into the seat while offering the operator the comfort of a broad and stable work platform.

3-Point hitch control leverFlat deck

Put your implement exactly where you want it with highly responsive and fine-tuned depth control.

Differential lock pedal

The pedal locks the differential to keep both wheels moving and help you get through difficult paddies.

2 speed range shift lever

The 2 speed range shift can switch between high and low speeds for use in a wide range of applications from tilling in paddy fields to traveling between fields.

Four-wheel drive lever

A simple lever lets you switch between two and four-wheel drive for greater traction.

Quality That's Built to Last

Engine, transmission and rotary are all designed by YANMAR

The powertrain of the engine at the heart of the tractor, the transmission and the rotary gearbox it drives, are made tough with highly durable casting. Because Yanmar designs these core components itself, they are built to work together for maximum power transfer. With no one component subject to excessive stress, durability is greatly increased.

Dedicated hydraulic clutch for PTO

The hydraulic clutch was chosen for its superior resistance to wear and high durability. It is also independent of the travel clutch and isolates it from stress or damage from farm work.

One-touch PTO button

Stop the PTO at the touch of a button to prevent damage to the PTO drive shaft when raising implements. There is no need to stop the tractor.

High-capacity fuel tank

A capacity of 50 liters lets you work all day without having to stop for refueling.

Lockable fuel cap

Secure your valuable fuel supply.

Side mirrors

Right and left side mirrors are standard.

High visibility LCD meter

The intuitive LCD display lets you see what you need, when you need it, even in daylight.

Projector-type headlight

Low and high beam let you pierce through the darkness to keep working after the sun goes down.

12V accessory socket

"Charge smartphones and other devices while on the go.
(Cigar USB Socket not included)"

ROPS

Yanmar provides ROPS as standard to reduce the chance of injury in the event of tractor roll over.

Console

Convenient storage for drinks, devices and whatever else you need.

Seat belt

The standard-fitted seatbelt helps prevent injury in the even of an accident.

Tool box

"No need to head back for tools when this toolbox is right near your feet.
(Tools not included)"

Canopy

A canopy protects the operator from the harsh elements.

Wide Step

A wide step allows the operator to get on / off the tractor smoothly.

Hood access

The gas-damper equipped hood opens to a full 80 degrees for easy access.

Grease fittings

Allocating greasing nipples to appropriate locations. Periodical refilling of grease maintains the life of your machine.

Large fuel / water separator

Prevents water/moisture and dust from entering the engine.

Large-capacity maintenance-free battery

Gives you the power to get your working day started. Consult the battery indicators for any necessary maintenance.

Engine oil / engine oil filter

Well accessible without removing any surrounding parts like side covers.Assisting easy inspection of engine oil.

beberapa suku cadang lengkap dari mesin yanmar mulai dari vbelt, kipas radiator, filter ,piston dan lain sebagainya

Yanmar's genuine spare parts

Yanmar's genuine spare parts support you for long-machine life and maximize the work performance for long time.

dua botol oli gardan dan oli mesin asli yanmar untuk traktor roda 4 yanmar

Long-life transmission fluid TF500T

A long life of up to 600 hrs, means you save time and money on transmission fluid changes. (Sold separately)

Front weight (1A8253-10300)
Front bracket (1A8253-10200)

Mount up to five 30kg weights for added stability.

Rear wheel weight (1A8253-34990)

Mount any combination of one 20kg, and two 25kg weights for a maximum of 70kg, on the rear wheels for added traction.

Rear working light (1A8253-54100)

Light up the night with this rear-mounted lamp.

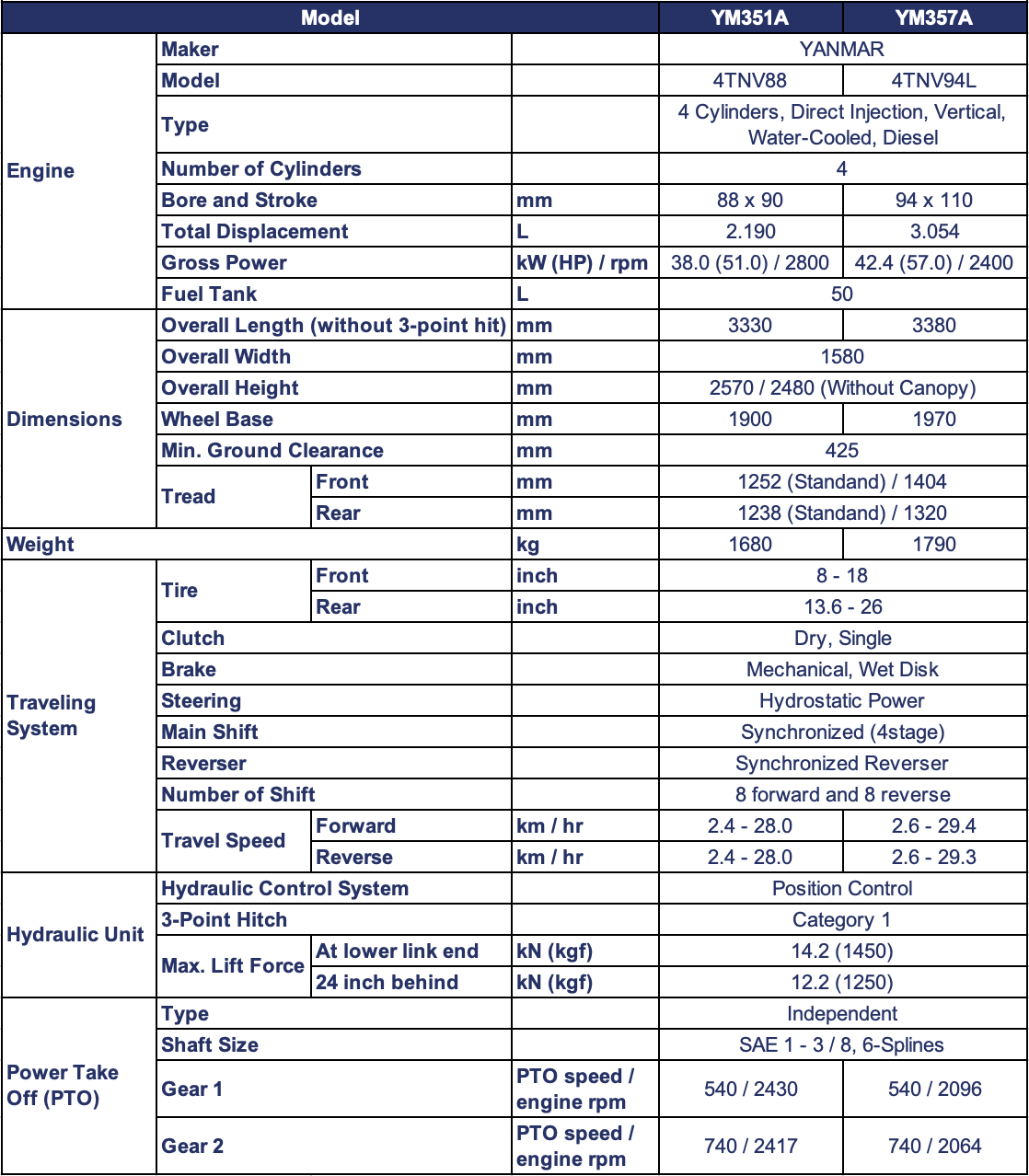

Specifications

Tractor YM 351 A / YM 357 A
